INTEGRATED CACHE SERVER
Built-in Cache
The integrated disk cache server inside the ELS300 handles everyday reads and writes with millisecond-to-second response while preserving file-level access across the archive.
RACK MOUNT OPTICAL STORAGE

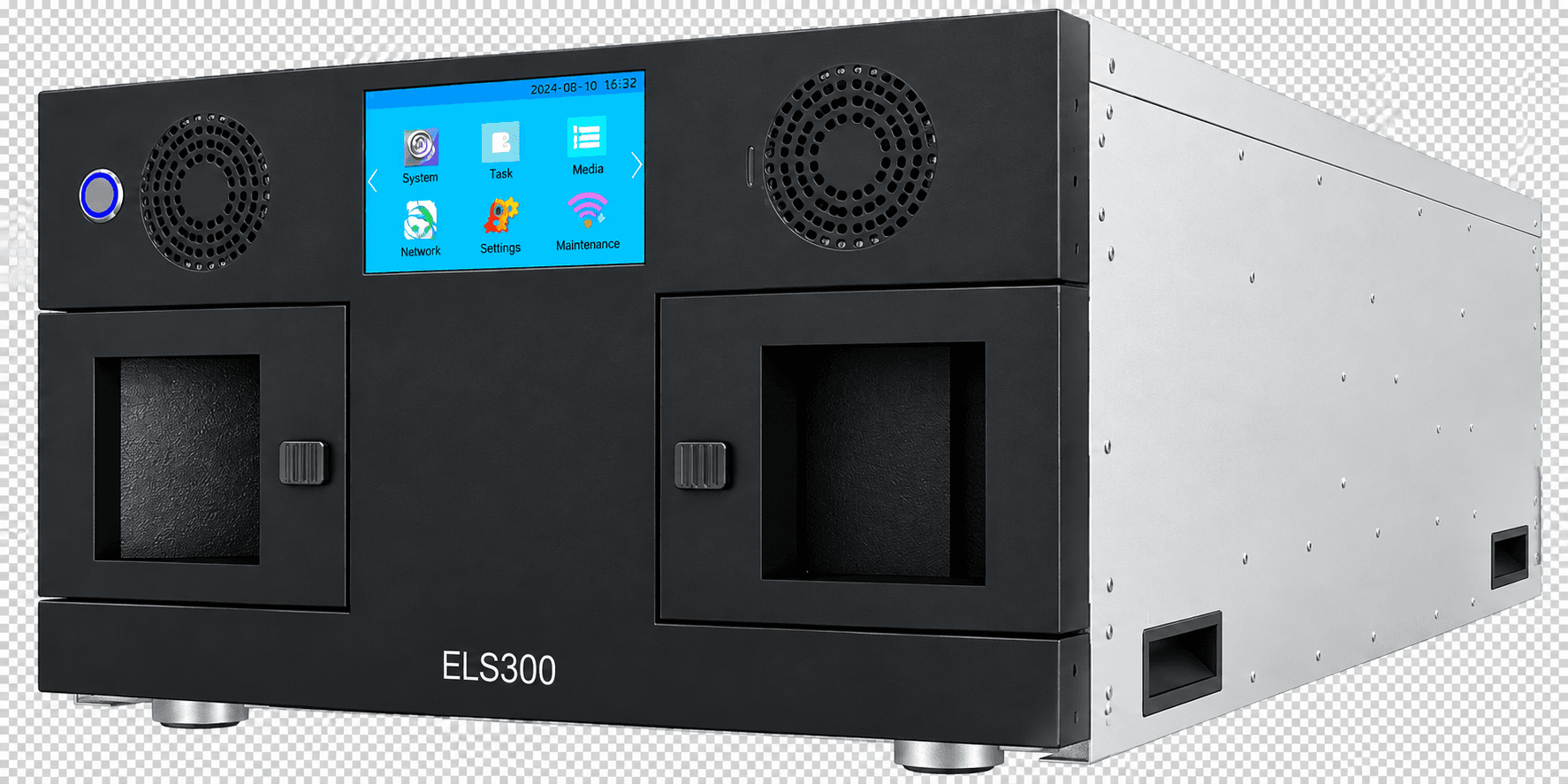

ELS300
Organizational storage with an automatic optical second copy.
The Savartus ELS300 is an organizational storage appliance with its disk cache server integrated in the same 7U chassis. It serves everyday access from the built-in cache and automatically creates a second, write-once Blu-ray copy of each write for durable optical preservation.
CAPACITY57.6 TB200 GB discs currently available; capacity can be upgraded with higher-capacity media.
MEDIAWrite-once Blu-ray optical
DRIVESUp to 4 Blu-ray drives
FORM FACTOR7U Rack Mount
ACTIVE ARCHIVE ARCHITECTURE
Performance and preservation
are different jobs.
Savartus systems are designed to participate in a tiered architecture where information can remain highly accessible while preserved copies reside on durable optical media.
→
OPTICAL TIER
ELS300
The original copy is written to write-once Blu-ray media and protected with optical RAID 11+1 for permanent retention.
→
DEEP PRESERVATION
Offline Optical
If a disk fails, the system recovers from the Blu-ray copy automatically while the archive remains secure, tamper-proof, and resilient over decades.
SYSTEM CHARACTERISTICS
ELS300 at a glance.
System Type
Magnetic-optical hybrid archive appliance
Cache Server
Integrated in the same 7U chassis
Capacity
57.6 TB maximum system capacity with 200 GB media
Write Workflow
Each write is stored on the built-in cache and automatically copied to write-once optical media
Storage Media
Write-once Blu-ray optical
Media Capacity
Up to 200 GB per disc
Number of Cartridges
24 standard disc cassettes
Media per Cartridge
12
Number of Magazines
1
Cartridges per Magazine
24
Maximum Media
288
Drives
Up to 4 Blu-ray drives
Form Factor
7U Standard Rack-Mount
Disk Configuration
4 x 3.5" drive bays, independent single-disk mounting
Storage Interface
S3-compatible through oRain
Management
Savartus oRain Storage Management
Active Archive
Integrated cache server + permanent optical retention in one appliance
Maximum Throughput
80 MB/s concurrent throughput
Optical RAID
11+1
Interfaces
Gigabit LAN / SAS / S3
Dimensions
17.6" × 12.2" × 36.6" / 44.8 × 31.0 × 93.0 cm
Weight
176 lbs / 80 kg
SELL SHEET
ELS300 product sell sheet.
Download the product sell sheet for hardware specifications, capacity details, and system positioning.
USE CASES
Built for information
that needs to persist.
